Technical Performance
- System width: 50 mm / 60 mm
- Basic system: 50 mm / 60 mm
- Fire protection classes: G30 / F30 (DIN) EI 30 / EI 60 (EN)
- Infill dimensions: Portrait format up to 1800 mm x 3000 mm Landscape format up to 2400 mm x 1400 mm
- Heigth of façade: up to 5000 mm
- Polygon façade: up to ± 5°
- Infill thickness: F30 / G30: up to 38 mm, EI 30 / EI 60: up to 57 mm
System Technology
- For vertical and overhead glazing (fire protection up to 0º inclination)
- Slim sight lines: 50 mm or 60 mm
- Compatible and structurally identical with WICTEC 50 and WICTEC 60 standard systems
- Infills: glass or panel
- Extended freedom in design with large infill dimensions possible
- Suitable for internal and external applications
- The WICONA fire protection parapet, in resistance class W90, offers the appropriate solution to prevent fire flashover with standard façades.
- Can also be combined with WICSTYLE 77 FP fire protection doors and WICLINE 75 FP fire protection windows

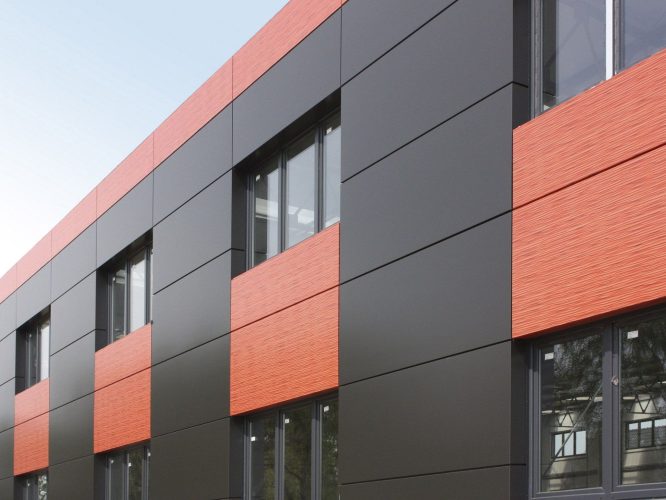

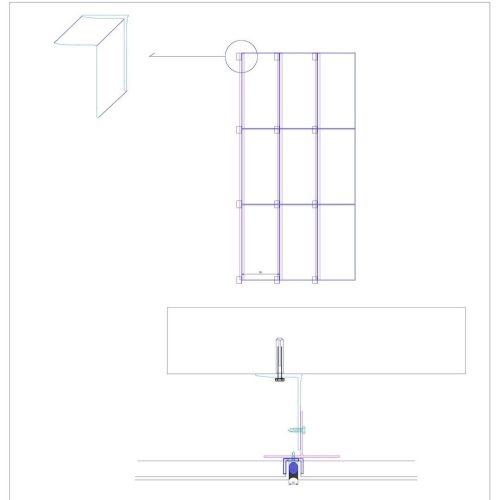

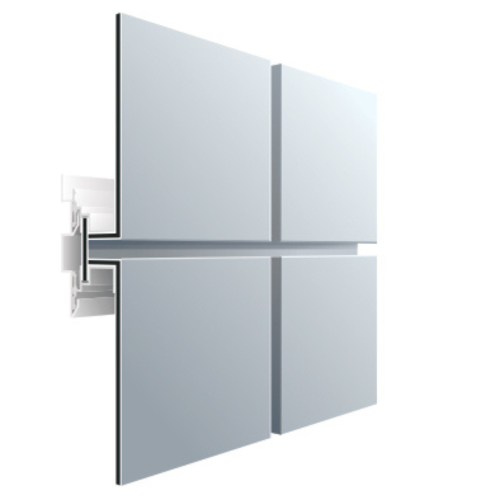

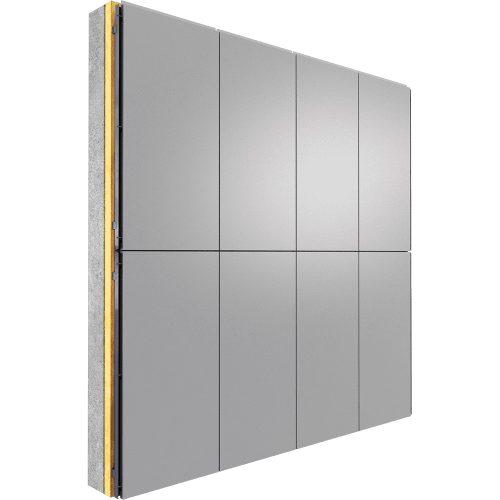

Aluminum Composite Panel
The “skin of architecture” is a core topic of modern construction. Building envelopes therefore deserve particular attention. They can be simple and functional, exciting and representative. The proportion, surface structure and colouring of façades lead to the creation of unique structures; their interplay characterizes the Everest aluminium composite material idea. With over 20 years of experience, Everest ACM is listening to the needs of architects, fabricators and installers. Lots of projects worldwide serve as an inspirational starting point in the planning process of any construction project. Onwards, we are happy to share our know-how with customers and offer comprehensive advice for every step of the building process.

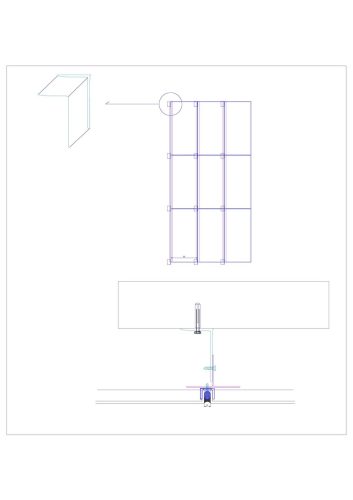

Technical data
Exterior visible width
70 mm [2 3/4”]
Mullion Depth
75-220 mm [3”- 8.7”]
Transom Depth
75-220 mm [3” – 8.7”]
Glass Thickness
≤ 50 mm [≤ 2”]
Mullion maximum inertia
jx=501
Transom maximum inertia
jx=386
Uf
1.3 W/m2K [0.229 BTU/h ft2°F]
