Technical Performance
- System width: 50 mm / 60 mm
- Basic system: 50 mm / 60 mm
- Fire protection classes: G30 / F30 (DIN) EI 30 / EI 60 (EN)
- Infill dimensions: Portrait format up to 1800 mm x 3000 mm Landscape format up to 2400 mm x 1400 mm
- Heigth of façade: up to 5000 mm
- Polygon façade: up to ± 5°
- Infill thickness: F30 / G30: up to 38 mm, EI 30 / EI 60: up to 57 mm
System Technology
- For vertical and overhead glazing (fire protection up to 0º inclination)
- Slim sight lines: 50 mm or 60 mm
- Compatible and structurally identical with WICTEC 50 and WICTEC 60 standard systems
- Infills: glass or panel
- Extended freedom in design with large infill dimensions possible
- Suitable for internal and external applications
- The WICONA fire protection parapet, in resistance class W90, offers the appropriate solution to prevent fire flashover with standard façades.
- Can also be combined with WICSTYLE 77 FP fire protection doors and WICLINE 75 FP fire protection windows

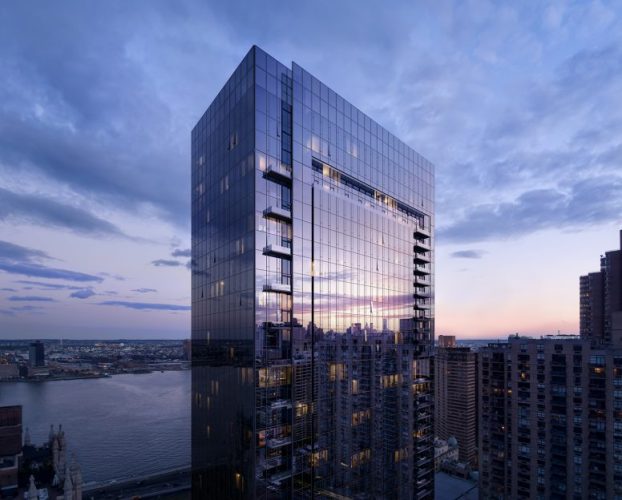

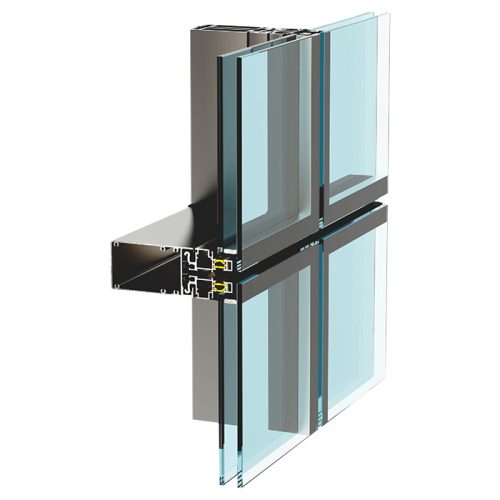

33 000 Structural Facade
Combines the high-quality appearance of an all-glass facade with the efficient construction of a high performance unitized facade. Unitized customized construction is a flexible and powerful modular system for unitized facades. The main difference between this system and special constructions is the system components approved by renowned test institutes. All other components can be tailored perfectly to the facade, around these components, on an individual project basis.

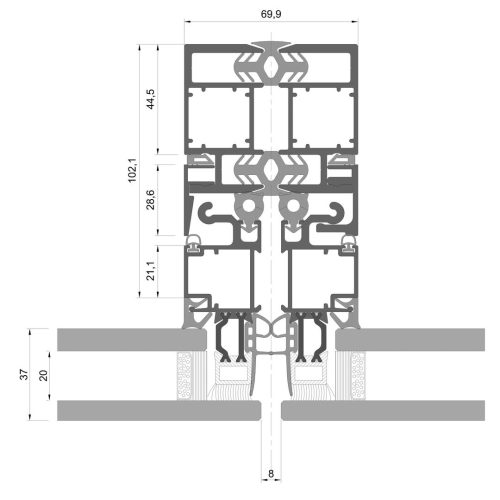

Technical data
Exterior visible width
70 mm [2 3/4”]
Mullion Depth
75-220 mm [3”- 8.7”]
Transom Depth
75-220 mm [3” – 8.7”]
Glass Thickness
≤ 50 mm [≤ 2”]
Mullion maximum inertia
jx=501
Transom maximum inertia
jx=386

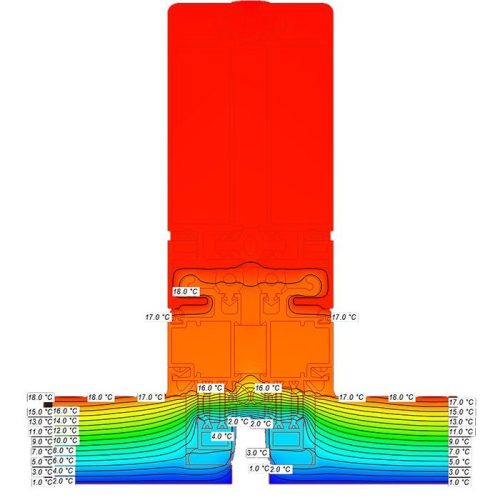

Uf
1.3 W/m2K [0.229 BTU/h ft2°F]
