Technical Peformance
- System width: 50 mm
- Profile depth: 50 mm to 260 mm
- Thermal insulation: Uf value up to 0.65 W/(m²K)
- Infill thickness: 3 mm to 63 mm
- Glass weight: up to 6.0 kN
- Polygon façade: up to ±45° (per side = 90° angle)
- Roof pitch: up to 10°
System Technology
- Ideal for vertical and polygon façades, sloped glazing and spatial structures
- Individual design possibilities, thanks to a wide range of aesthetic profiles
- Alternative: Industrial design for the appearance of steel profiles
- Reliable glass load transfer (up to 6.0 kN), with improved transom-joint technology
- Overlapping and secure drainage at the cruciform, without mechanical mullion processing, ensures tried-and-tested impermeability
- Consistent internal gasket appearance
- Wide selection of structural profiles, with optional integral reinforcements, ensuring optimal performance
- External glazing, with visible or concealed fixings
- Extensive solutions for framework junctions and conservatories

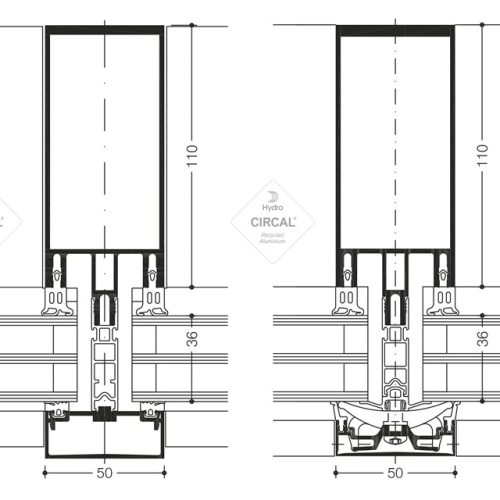

WICTEC 50
WICTEC 50 is the basic version of the stick curtain wall system, with an extra-narrow face width of 50 mm, inside and outside. The unique flexibility is demonstrated by the various system variants and enhancement options, all of which are feasible with minor additions to the base system and without compromising on appearance.
Additional options in identical design and technical set-up:
- Passive house curtain wall (ift Rosenheim)
- SG-design (integrated pressure profile)
- Structural glazing curtain wall
- Add-on curtain wall for steel and wood
- Integrated sun protection
- Fire protection curtain wall
- Quick glazing
- Straight cut
- Heavy load system
Technical data
System test results / CE product pass in accordance with DIN EN 13830
Air permeability
Class AE
Water tightness
RE 1200
Resistance to wind load
2000 / –3200 Pa, security 3000 / –4800 Pa
Sound insulation
Rw (C;Ctr) = 47 (–1; –4) dB
Impact resistance
Class E5 / I5
Burglar resistance
RC1N, RC2N, RC2, RC3
Bullet resistance
FB4
Quality assurance
Certified according to ISO 9001:2008
Environmental management
Certified according to ISO 14001
