Technical Peformance
- System width: 50 mm
- Supporting frames: From 50 mm width

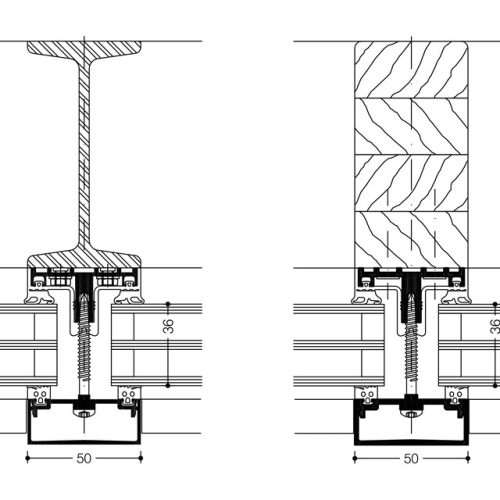

- Structural profiles : Wood profiles, Steel tubes, Open steel profiles
System Technology
- Free choice of material (wood or steel), for profile widths from 50 mm
- Same interface profile for mullions and transoms
- Overlapping via vertical and horizontal single-piece sealing gaskets with different drainage levels
- Simple and efficient screw fixing of the aluminium profiles
- Alternatively, using steel studs for steel tubes with a wall thickness from 4 mm
- Ideal for vertical and polygon façades, sloped glazing and spatial structures
- External glazing, with visible or concealed fixings
WICTEC 50

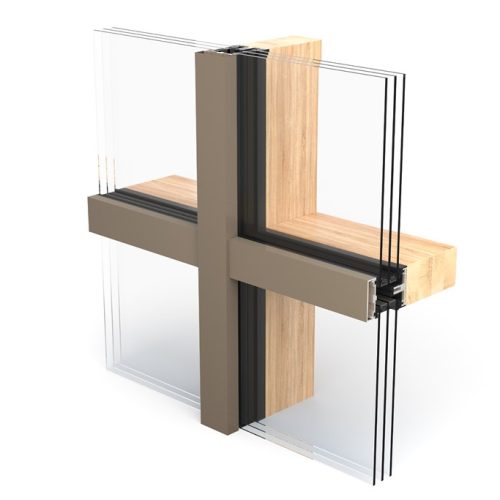

WICTEC 50 is the basic version of the stick curtain wall system, with an extra-narrow face width of 50 mm, inside and outside. The unique flexibility is demonstrated by the various system variants and enhancement options, all of which are feasible with minor additions to the base system and without compromising on appearance.
Additional options in identical design and technical set-up:
- Passive house curtain wall (ift Rosenheim)
- SG-design (integrated pressure profile)
- Structural glazing curtain wall
- Add-on curtain wall for steel and wood
- Integrated sun protection
- Fire protection curtain wall
- Quick glazing
- Straight cut
- Heavy load system
Technical data
System test results / CE product pass in accordance with DIN EN 13830
Air permeability
Class AE
Water tightness
RE 1200
Resistance to wind load
2000 / –3200 Pa, security 3000 / –4800 Pa
Impact resistance
Class E5 / I5
Burglar resistance
RC1N, RC2N, RC2
Bullet resistance
FB4
Quality assurance
Certified according to ISO 9001:2008
Environmental management
Certified according to ISO 14001
