93 000 Minimal Slide Series
The minimal framed large panel sliding glass wall by Everest 93 000 series is simple in form yet engineered to perfection. Producing clean, uniform, and ultra-thin lines for maximum light-filled spaces that connect the interior to the exterior. 93 000 minimal slide series offers full floor to ceiling sliding glass panels with recessed top and bottom tracks. Produced through time-tested premium engineering, this system allows for maximum transparency with the largest panes of glass and the most minimal frames offered by Everest.
Technical data
Exterior visible width
10 mm [0.4”]
Frame Depth
111 mm [4.4”]
Sash Depth
37 mm [1.45”]
Glass Thickness
≤ 37 mm [≤ 1.45”]

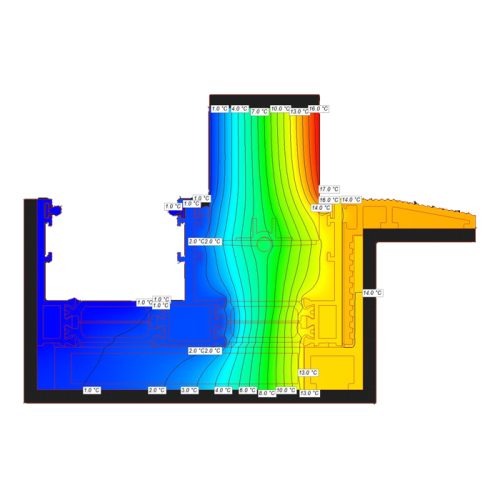

Thermal Insulation
Polyamide 34 mm [1.33”]
Sash mechanism weight limit
500 kg [1102 lbs]
Uf
1.39 W/m2K [0.244 BTU/h ft2°F]
