95 000 Series

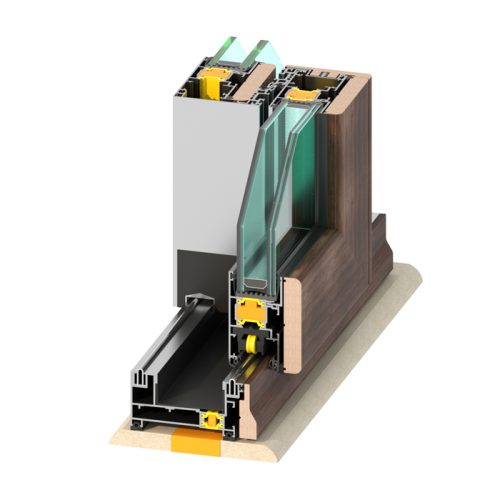

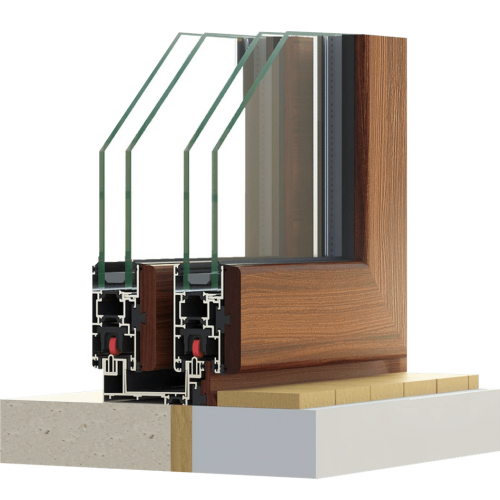

The 95000 Series is an insulated sliding system for elegant windows and doors, combining the advantages of aluminum with the warmth of natural wood. The advantages of this system are Excellent aesthetics and combination with interiors surrounded by wood. High energy savings due to the high energy efficiency of the system. Increased level of security. High level of sound insulation. Ease of use and high functionality. High quality with certified framing performance. Increased static loads and functionality in case of severe weather conditions.

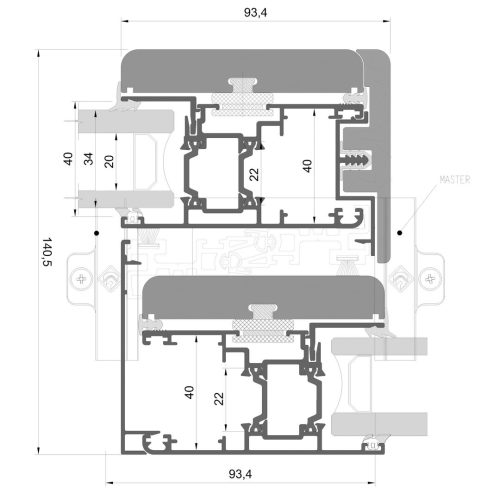

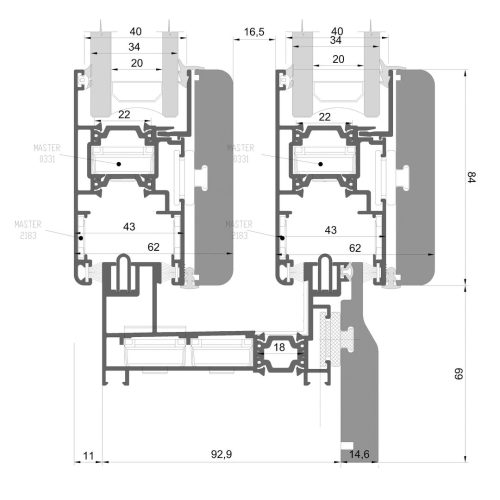

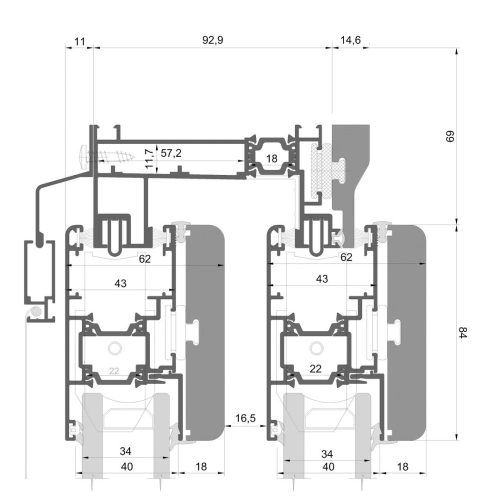

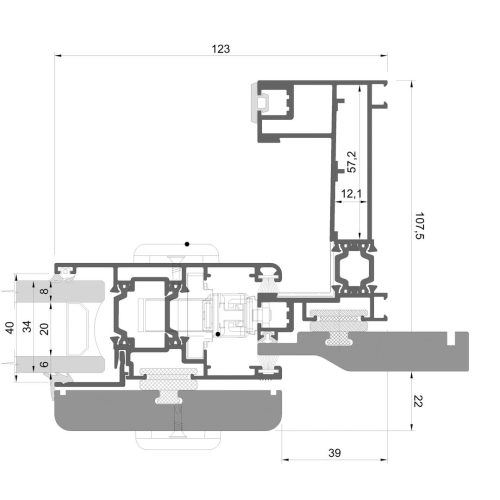

Technical data
Exterior visible width
123 mm [4.8”]
Frame Depth
108 mm [4.3”]
Sash Depth
62 mm [2.4”]
Glass Thickness
≤ 34 mm [≤ 1.3”]

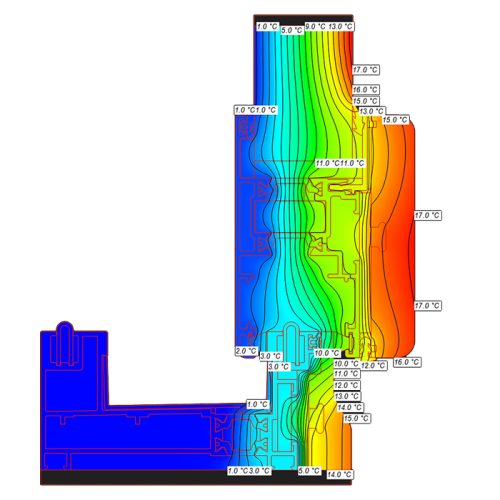

Thermal Insulation
Polyamide 22 mm [0.9”]
Sash mechanism weight limit
≤ 150 kg [≤ 330.7 lbs]
Uf
1.79 W/m2K [0.315 BTU/h ft2°F]
